3 watt High Power RGB LED
LED With Three Separate Internal LEDs
The RGB STAR LED is very special in that it contains three separate LEDs. With a rating of 3 watt, current to the LED is optimal at 700mA for each colour.
Each RGB high power LED contains 3 anodes and 3 cathodes. Designed for operation in specialty lighting applications. Typical applications include:
- In Mood lighting
- Indoor / outdoor illumination
- Architectural lighting
- Stage lighting
- Signal lighting
- Automotive interior lighting
- and many more...
This LED uses the multi-chip design. The close chip placement achieves an exquisite colour mix even with short distances. The 6-pin layout allows to use it in almost all common applications. Allows for usage in many connection standards.
Heat management:
Applications with high power LEDs need adequate heat conduction. It is very important and necessary to get the heat off the devices to ensure the maximum light output, lifetime and efficiency.
Specifications:
RGB-3W-120-01
- Color Frequency: Red: 620nm, Green: 520nm, Blue: 460nm
- Luminous Intensity: Red: 65 lumen, Green: 80 lumen, Blue: 65 lumen
- Viewing Angle: 120°
- Radiation Pattern: Lambertian
- Forward Voltage: Red: 2.6v (2.4-2.6v), Green: 3.5v (3.4-3.6v), Blue: 3.6v (3.4-3.6v)
- Typical Forward Current: 700mA
- Style: 3 watt STAR Configuration (6 pin)
RGB-3W-120-05
- Color Frequency: Red: 620nm, Green: 520nm, Blue: 460nm
- Luminous Intensity: Red: 75 lumen, Green: 120 lumen, Blue: 50 lumen
- Viewing Angle: 120°
- Radiation Pattern: Lambertian
- Forward Voltage: Red: 2.5v (2.4-2.7v), Green: 3.8v (3.7-4.0v), Blue: 3.8v (3.7-4.0v)
- Typical Forward Current: 700mA
- Style: 3 watt STAR Configuration (6 pin)
RGB-3W-140-04
- Color Frequency: Red: 620nm, Green: 520nm, Blue: 460nm
- Luminous Intensity: Red: 90 lumen, Green: 125 lumen, Blue: 80 lumen
- Viewing Angle: 140°
- Radiation Pattern: Lambertian
- Forward Voltage: Red: 2.5v (2.4-2.6v), Green: 3.3v (3.2-3.5v), Blue: 3.3v (3.2-3.5v)
- Typical Forward Current: 700mA
- Style: 3 watt STAR Configuration (6 pin)
RGB-3W-120-02 (discontinued)
- Color Frequency: Red: 620nm, Green: 520nm, Blue: 460nm
- Luminous Intensity: Red: 90 lumen, Green: 120 lumen, Blue: 80 lumen
- Viewing Angle: 120°
- Radiation Pattern: Lambertian
- Forward Voltage: Red: 2.6v (2.4-2.6v), Green: 3.5v (3.4-3.6v), Blue: 3.6v (3.4-3.6v)
- Typical Forward Current: 700mA
- Style: 3 watt STAR Configuration (6 pin)

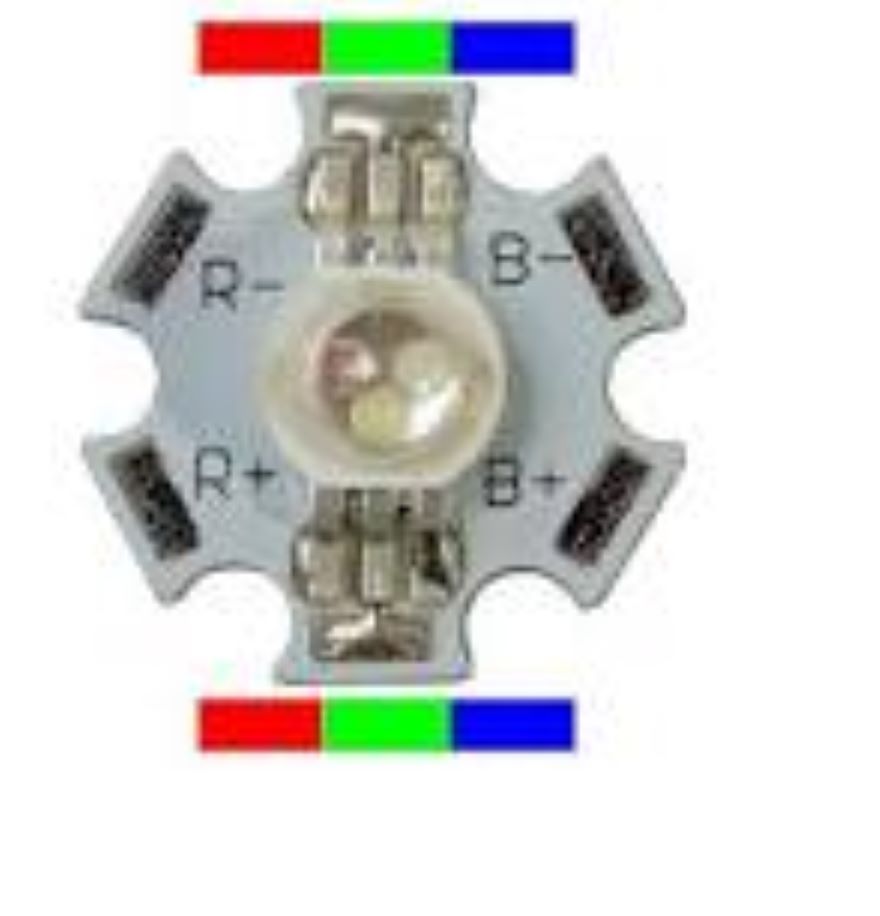

RGB LED Connections:
