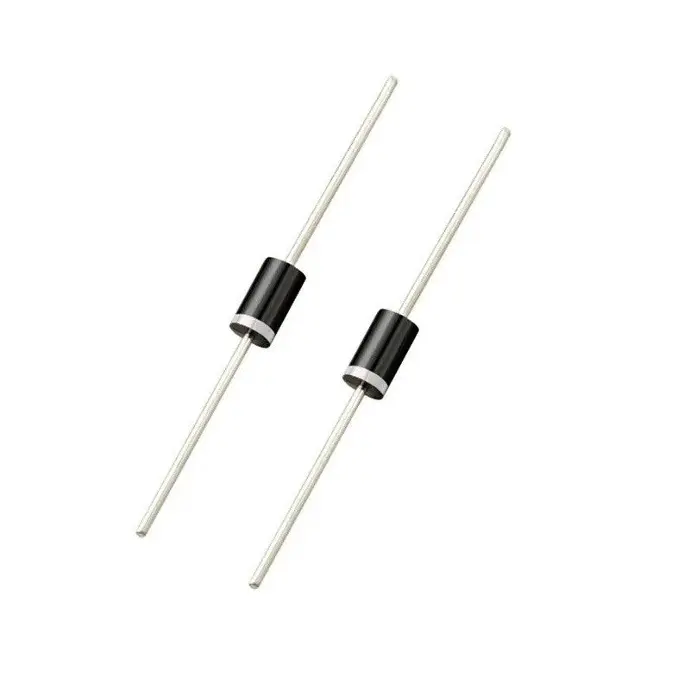

1N5822 Schottky Reflector Diode (10 Pack)

https://www.botshop.co.za/web/image/product.template/2288/image_1920?unique=d01fa54
(0 review)

24.10 24.1 ZAR 24.10 VAT Included

20.96 VAT Included

Not Available For Sale

This combination does not exist.


Internal Reference: EC-012-1N5822-N

1N5822 Schottky Reflector Diode

Schottky diodes are designed for switch-mode power supplies and high-frequency DC-to-DC converters.

The 1N5819 is a Schottky diode with a low forward voltage drop and high switching speed. It is commonly used in high-frequency applications like Inverters, DC-DC converters, etc.


Features:

Fast switching
Low forward voltage drop
Small conduction loss
Very low switching loss

Technical specifications:

Mounting Type

Through Hole

Package Type

DO-27

Maximum Continuous Forward Current

3A

Peak Reverse Repetitive Voltage

40V

Diode Configuration

Single

Rectifier Type

Schottky Rectifier

Diode Type

Schottky

Pin Count

2

Maximum Forward Voltage Drop

600mV

Number of Elements per Chip

1

Diode Technology

Schottky Barrier

Diameter

5.6mm

Peak Non-Repetitive Forward Surge Current

80A
