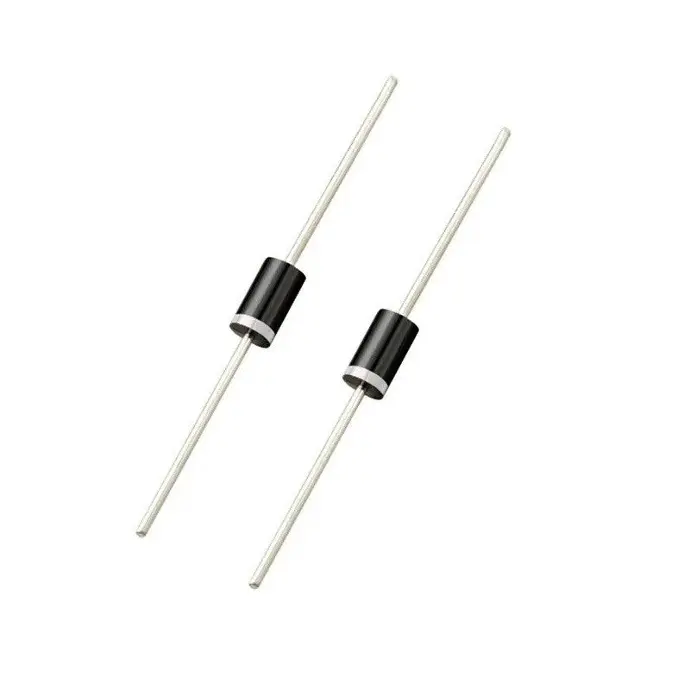

1N5819 Schottky Reflector Diode (10 Pack)

https://learn.botshop.co.za/web/image/product.template/2287/image_1920?unique=d01fa54
(0 review)

21.46 21.46 ZAR 21.46 VAT Included

18.66 VAT Included

Not Available For Sale

This combination does not exist.


Internal Reference: EC-012-1N5819-N

1N5819 Schottky Reflector Diode

The  1N5817, 1N5818, and 1N5819 are a family of low-drop 3A Schottky rectifier diodes. They are designed for switch-mode power supplies and high-frequency DC-to-DC converters.

The 1N5819 is a Schottky diode with a low forward voltage drop and high switching speed. It is commonly used in high-frequency applications like Inverters, DC-DC converters, etc.


Features:

Fast switching
Low forward voltage drop
Small conduction loss
Very low switching loss

Technical specifications:

Mounting Type

Through Hole

Package Type

DO-41

Maximum Continuous Forward Current

1A

Reverse Repetitive Voltage

40V

Diode Configuration

Single

Rectifier Type

Schottky Rectifier

Diode Type

Schottky

Pin Count

2

Maximum Forward Voltage Drop

900mV

Number of Elements per Chip

1

Diode Technology

Schottky Barrier

Diameter

2.72mm

Peak Non-Repetitive Forward Surge Current

25A
