Dual Voltage Regulator Module Output +/- 5V

(0 review)

205.45 205.45000000000002 ZAR 205.45 VAT Included

178.65 VAT Included

Not Available For Sale

This combination does not exist.


Internal Reference: Dual Voltage Regulator Module Output +/- 5V

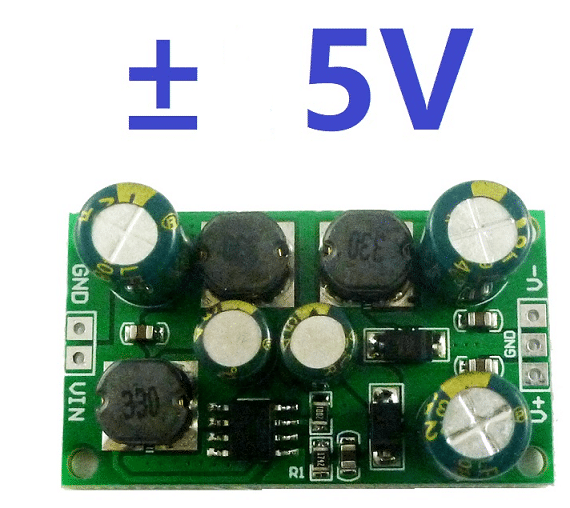

Multifunction DC-DC Converter  Dual Voltage Regulator Module Output + & - 5V

Input voltage 3~24V,output optional +5V and -5V floating GND pin
Maximum output power: max 8W
Conversion efficiency :71-90%
Quiescent current: 3-4mA
8W DC-DC Converter working frequency 400KHZ.
Operating ambient temperature : -40~+85 Degrees Celsius

Size : 42 x 24 x 15mm
Weight :  10g

High efficiency up to 90%
Built in Frequency Compensation
Built in Soft-Start Function
Built in Thermal Shutdown Function
Built in Current Limit Function


ADC/DAC/Operational Amplifier Reference voltage
RS232 RS485 RS422 Bus
Audio equipment
Low power audio power supply
Car audio amplifier dual power board
LCD power supply
Instrumentation equipment
Instrumentation mustimeters
