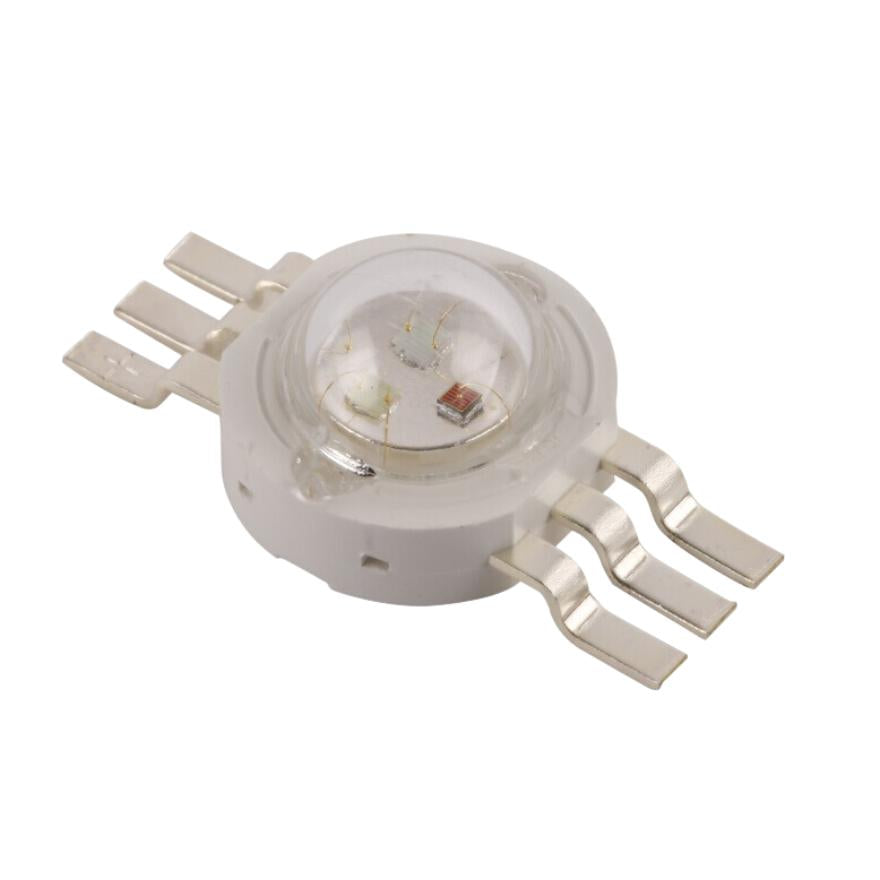

3 watt High Power RGB LED
The RGB star LED is very special in that it contains three separate LEDs. With a rating of 3 watt, the current to the LED is optimal at 700mA for each colour.
Each RGB high-power LED contains 3 anodes and 3 cathodes. Designed for operation in specialty lighting applications. Typical applications include:
- In Mood lighting
- Indoor/outdoor illumination
- Architectural lighting
- Stage lighting
- Signal lighting
- Automotive interior lighting
- and many more...
This LED uses a multi-chip design. The close chip placement achieves an exquisite colour mix even with short distances. The 6-pin layout allows to use it in almost all common applications. Allows for usage in many connection standards.
Heat management:
Applications with high power LEDs need adequate heat conduction. It is very important and necessary to get the heat off the devices to ensure the maximum light output, lifetime and efficiency. Because this LED does not come with a heat sync, it is important to add a heat sync to the LED to use it for long time periods.
Specifications:
RGB-3W-120-01
| Colour frequency | Red: 620nm, Green: 520nm, Blue: 460nm |
| Luminous Intensity | Red: 65 lumen, Green: 80 lumen, Blue: 65 lumen |
| Viewing Angle | 120° |
| Radiation Pattern | Lambertian |
| Forward Voltage | Red: 2.6v (2.4-2.6v), Green: 3.5v (3.4-3.6v), Blue: 3.6v (3.4-3.6v) |
| Typical Forward Current | 700mA |
| Style | 3 watt Configuration (SMD 6 pin) |
RGB LED Connections:
This RGB LED does not have a common anode or a common cathode. There are 3 pins on each side of the LED. One side is the negative pole of each colour within the LED, and the other side is the positive pole for each colour in the LED.
