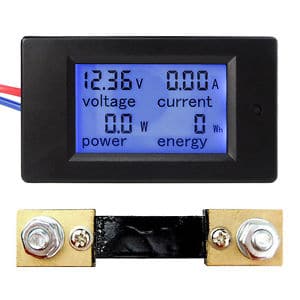

DC Voltage Current Power Energy Panel Meter
DC Voltage Current Power meter Description:
DC 6.5-100V 100A LCD Digital Volt Watt Current Power Meter Ammeter Volt meter
Electrical parameter measurement function (volts, current, active power).
Voltage alarm function (over-voltage threshold alarm, the backlight, and volt flashing prompt). The 100A meter is equipped with a shunt. Power-down data storage function and long press button for energy clear function.
Full LCD screen display function (display voltage, current, active power).
Watt Hour values clear function
Power-off data save function
Specifications:
- Operating Voltage: DC 6.5~100V
- Voltage Measuring Range: DC 6.5~100V (display format: 6.50~99.99V)
- Current Measuring Range:0~100A
- Rated Power: 0~2kW (display format: <1kW 0.0~999.9W , >1kW 1000~4500W)
- Energy Measuring Range : 0~9999KWh (display format: <10kWh 0~9999Wh , >10kWh 10~9999kWh)
- Operating frequency: 45~65 Hz
- Measurement accuracy: 1 class
- Wire Required: wiring sequence can’t be wrong
- Dimensions: 89.6mm(W) x 49.6mm(H) x 24.4mm(D)
- Cutout Dimensions: 84.6mm(W) x 44.6mm(H)
