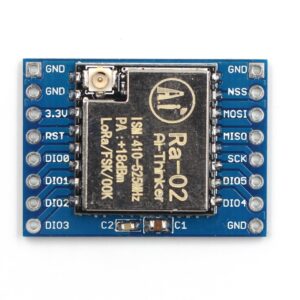

SX1278 LoRa Module 433M 10KM Ra-02

https://www.botshop.co.za/web/image/product.template/1670/image_1920?unique=3b8a574
(0 review)

150.08 150.08 ZAR 176.56 VAT Included

153.53 VAT Included

Not Available For Sale

This combination does not exist.

Mech Button

Internal Reference: DEV-019


SX1278 LoRa Module 433M 10KM Ra-02.

The Ra-02 module is a wireless transmission module based on SEMTECH's SX1278 wireless transceiver. It uses advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. The SX1278 RF module is used primarily for long-range spread spectrum communication. The SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance, and high reliability. At the same time, compared with the traditional modulation technology, LoRa ™ modulation technology has distinct advantages in anti-blocking and selection, which solves the problem that the conventional design scheme cannot consider the distance, interference, and power consumption at the same time.

SX1278 LoRa Module 433M Quick Spec

  • Communication distance: 10KM
  • Sensitivity: down to -148dBm
  • Programmable bit rates: up to 300kbps
  • RSSI dynamic range: 127dB
  • Wireless frequency: 433MHz
  • Working voltage: 1.8-3.7v
  • Working temperature: -40-+80 ℃
  • LoRa ™ Spread Spectrum modulation technology
  • Constant RF power output at + 20dBm-100mW voltage change
  • Half-duplex SPI communication
  • Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
  • Automatic RF signal detection, CAD mode, and very high-speed AFC
  • Packet engine with CRC up to 256 bytes
  • Small footprint dual-row stamp-hole patch package
  • Shielded housing

Product manual: https://github.com/IOT-MCU
