The Arduino Mega 2560 board

https://www.botshop.co.za/web/image/product.template/1698/image_1920?unique=d224e76
(1 review)

414.66 414.66 ZAR 487.83 VAT Included

424.20 VAT Included

Not Available For Sale

This combination does not exist.

Component Prototyping IC

Internal Reference: DEV-005

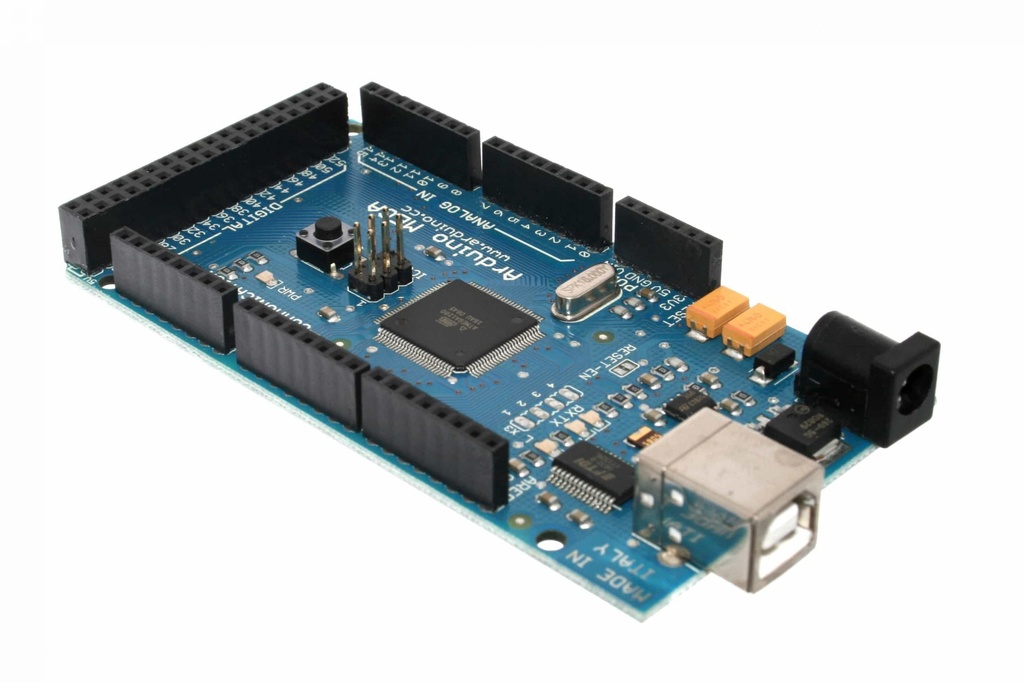

The Arduino Mega 2560 board.

The Arduino Mega 2560 is a microcontroller board that is often used in South Africa when you need lots of I/O pins and is based on the ATmega2560 chip. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. The Arduino Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.

This board is a 100% identical clone and not the original Arduino Mega. We sold many of them and had no problems with these boards. they are high quality 100% identical to the original Arduino Mega but at a much better price.

Technical specs

Microcontroller

ATmega2560

Operating Voltage

5V

Input Voltage (recommended)

7-12V

Input Voltage (limit)

6-20V

Digital I/O Pins

54 (of which 15 provide PWM output)

Analog Input Pins

16

DC Current per I/O Pin

20 mA

DC Current for 3.3V Pin

50 mA

Flash Memory

256 KB of which 8 KB is used by the bootloader

SRAM

8 KB

EEPROM

4 KB

Clock Speed

16 MHz

LED_BUILTIN

13

Length

101.52 mm

Width

53.3 mm

Weight

37 g
