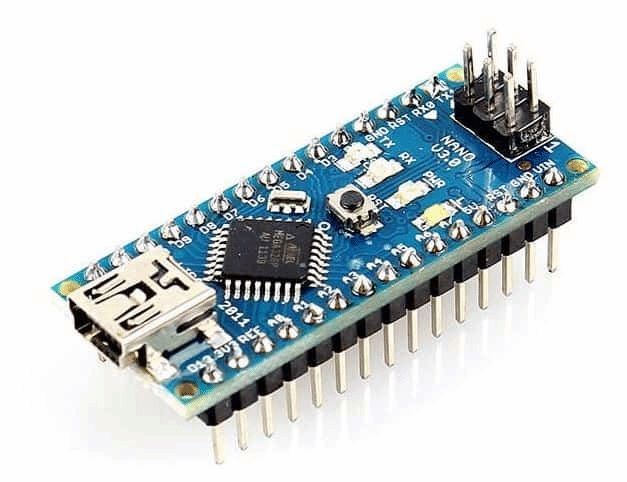

Arduino Nano with CH340 chipset

https://learn.botshop.co.za/web/image/product.template/536/image_1920?unique=d224e76
(0 review)

149.65 149.65 ZAR 149.65 VAT Included

130.13 VAT Included

Not Available For Sale

This combination does not exist.

Component Prototyping IC

Internal Reference: DEV-001

Arduino Nano with CH340 chipset

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328. It has more or less the same functionality as the Arduino Uno but in a smaller package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

Technical specs

Microcontroller ATmega328
Architecture AVR
Operating Voltage 5 V
Flash Memory 32 KB of which 2 KB used by bootloader
SRAM 2 KB
Clock Speed 16 MHz
Analog I/O Pins 8
EEPROM 1 KB
DC Current per I/O Pins 40 mA (I/O Pins)
Input Voltage 7-12 V
Digital I/O Pins 22
PWM Output 6
Power Consumption 19 mA
PCB Size 18 x 45 mm
Weight 7 g

Documentation

Eagle Files       Schematics
