ICL8038 Wave Form Generator

(0 review)

This product is no longer available.

Internal Reference: Comp-040

ICL8038 Wave Form Generator

This small but powerful wave form generator has the amazing ability to generate square waves, sine waves and triangle waves. You can also change the duty cycle and frequency of these waves by using the input on pins four and five. These little wave generators can also be used in radio applications since they can take FM signal inputs and it can do a FM frequency sweep.

Technical specifications:

Supply voltage

10V - 30V

Supply current

Max oscillation frequency100kHz
Typical FM sweep frequency10kHz
Typical FM linearity


Supply voltage frequency drift0.05%/V

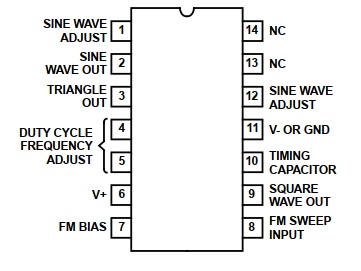

Pin layout:

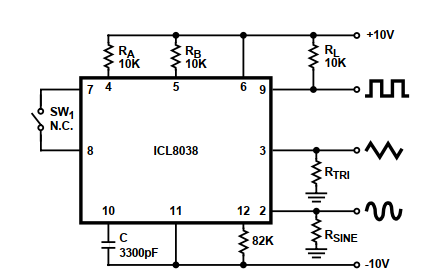

Basic circuit diagram:

Extra resources:

Datasheet for ICL3038
