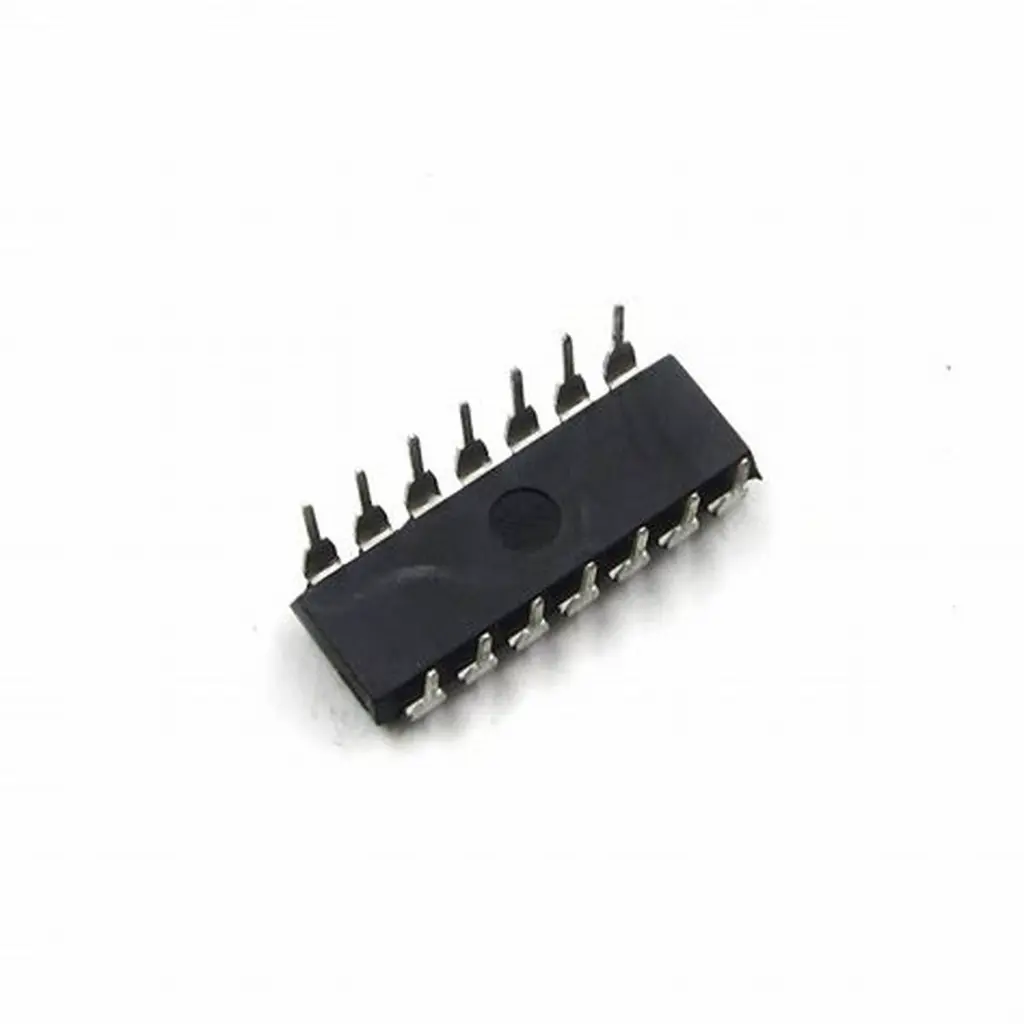

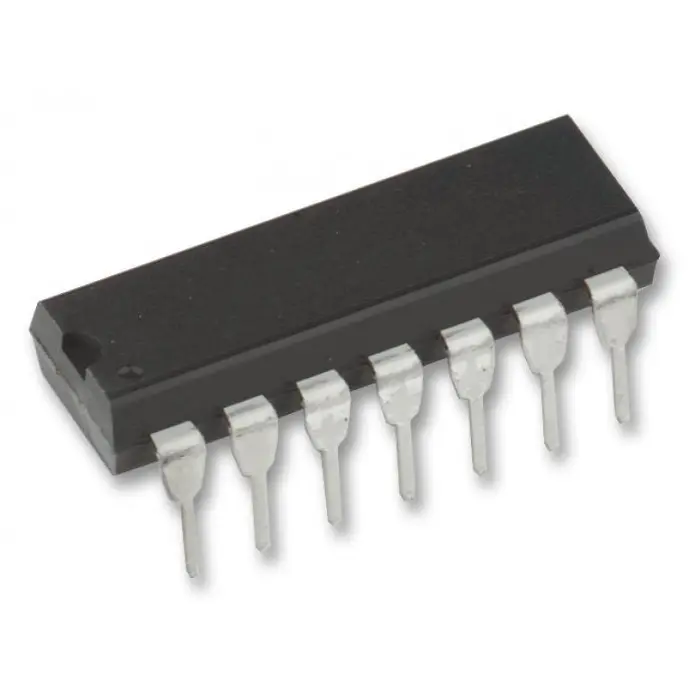

74SL14

https://www.botshop.co.za/web/image/product.template/443/image_1920?unique=90a9083
(0 review)

4.01 4.01 ZAR 4.01 VAT Included

4.10 VAT Included

Not Available For Sale

This combination does not exist.

Electronic Passives Component Capacitor

Internal Reference: Comp-039

74LS14

Hex inverters are one of the most common gates found in digital level circuits. The basic function of a hex inverter is that it converts a logic high to a logic low, and vise versa. These gates are also used in security systems and many other practical applications where an inverted signal i desired. This specific IC has six different inverter gates built in, and each gate only makes use of one input signal and provides one output signal. This makes the circuit smaller and more neat.

Technical specifications:

Max supply voltage

5.25V

Min high level voltage

2.7V
Max low level voltage0.5V

Max supply current

21mA

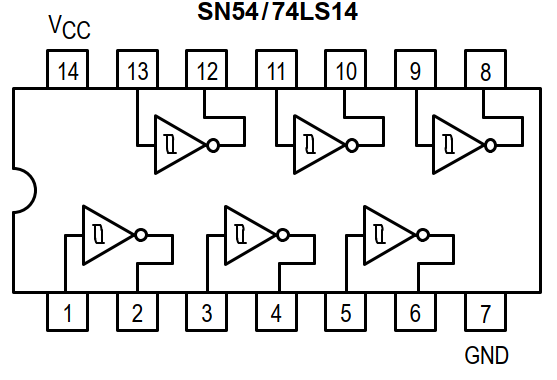

Pin layout:


Extra resources:

Datasheet for 74LS14
