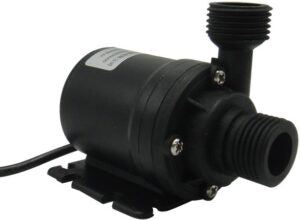

800L/Hr Centrifugal Water Heat Pump DC12V.
This 800L/H Centrifugal Water Heat Pump DC12V is capable of displacing larger amounts of water quickly and is best suited in hot water applications like solar geysers and camping showers as it can handle water of up to 60℃
NOTE !!! This pump is small, don't be fooled by its size DC pumps are highly efficient hence the smaller size - It packs a punch and tested to the specs below, it is called "the little monster" This easy-to-install compact and brushless pump is of high quality and can be used to quietly generate a high flow of water.
PLEASE NOTE:
- This pump can be powered by a battery, solar panel, or 12V DC power supply.
- A power source is NOT provided with this pump. You will need to connect your own battery, solar panel, or 12V DC power supply to the open-ended red (+) and black (-) wires.
- To achieve maximal output, you must power this pump with a minimum 20W 12v DC source. This pump will still run using a lower source; however, it will not reach its full potential. For instance, if you power the pump with a 10W supply it will still run but only at 50% of its potential.
- Please ensure the pump is regularly cleaned and grit or debris is removed to ensure optimum function
800L/Hr Centrifugal Water Heat Pump DC12V diverse range of uses:
- Aquarium industry:
| DIY Auto Top Off. |
| Create extra movement in your sump. |
| Use as an extremely low-powered uplift pump in nano-aquarium applications. |
- Automotive industry:
| Can be used as the water coolant of electric vehicles, electric motorcycles, cars, and other engines as well as in computer cooling systems. |
- Food industry:
| Can be used in dishwashers, electronic refrigerators, and for beer, coffee and fruit juice beverages as well as in the cleaning and disinfection of medical equipment. |
- Household appliances industry:
| Can be used in water fountains, foot baths, humidifiers, showers, swimming pools, and air conditioners as well as for toilet flushing and garden watering purposes. |
- Chemical industry:
| Can be used for water separation, water purification, and wastewater purification purposes. |
- Mechanical systems:
| Can be used for aircraft manufacturing, automobile manufacturing, and military production. |
800L/Hr Centrifugal Water Heat Pump DC12V Specification:
| Model | AW500S |
| Material | Engineering plastic |
| Water temperature | 0~60℃ hot water / cold water |
| Voltage( up to customers) | DC 12V |
| Flow channel characteristic | one side in, one side out |
| Current（A）±15% | 920mA |
| Power（W）±15% | 19W |
| Flow（L/Hr）±15% | 800L/Hr |
| Lift(m) | 4M |
| Suction caliber(mm) | 17 mm |
| Output caliber(mm) | 10 mm |
| Noise（dB） | ≤35 dB |
| Submersible | Yes |
