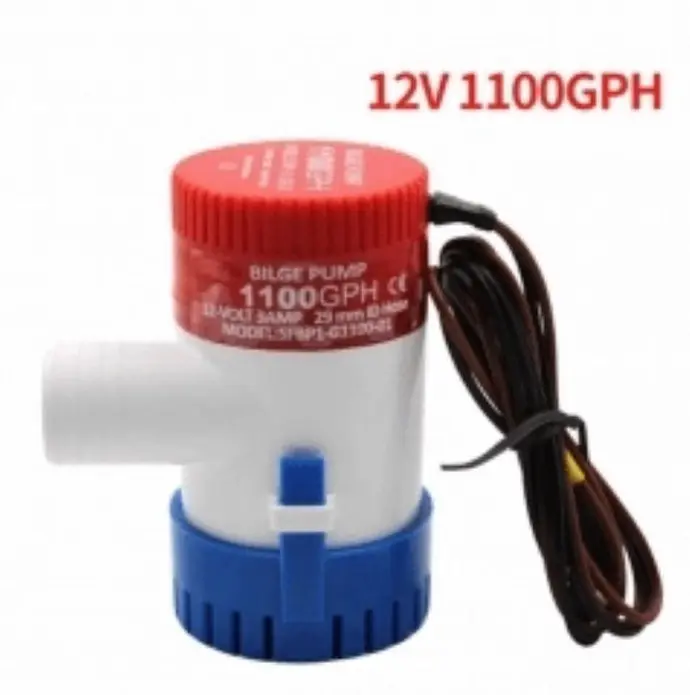

Submersible Bilge pump 12V DC 1100GPH
Are you a hobbyist looking for an efficient and reliable submersible pump? Look no further than the 12V DC Submersible Pump! This model, HYBPI-G1100-01, is perfect for various tasks you have up your sleeve. It operates at just 12V to provide an impressive flow rate of up to 1100 GPH (4,163 KLPH) — that’s more than enough to handle your water circulation needs.
As the name suggests, a submersible pump is designed to work with the entire assembly, consisting of a pump and motor, fully submerged in the liquid or medium to be processed. This type of pump has a hermetically sealed motor that is close-coupled to the pump body.
The submersible pumps are low-maintenance pumping devices because of their design and where they are installed. There is no need for priming and there is no possibility of damage to the internal components resulting from the exposure to foreign elements due to the hermetic sealing of submersible pumps.
Unit Breakdown:
The image above and the text below gives us a very good breakdown of the 12V DC submersible pump.
- Wire Buckle (1 unit)
- Pump Cover (1 unit)
- Tapping Screw (2 units)
- Motor Bracket (1 unit)
- Motor (1 unit)
- Seal Base (1 unit)
- Seal (3 units)
- Motor Cover (1 unit)
- Impeller (1 unit)
- Pump Housing (1 unit)
- Strainer (1 unit)
Dimensions:
12V DC submersible pump Specification:
- Model: HYBPI-G1100-01
- Operating Voltage: 12V
- Liter Per Hour: 1100 GPH (4,163 KLPH)
- Current Rating: 3A Motor
- Fuse: 5A Fuse
- Outlet: 1.15" Barbed Outlet
- Lead: ±900mm Wire Lead
- Weight: 392g
