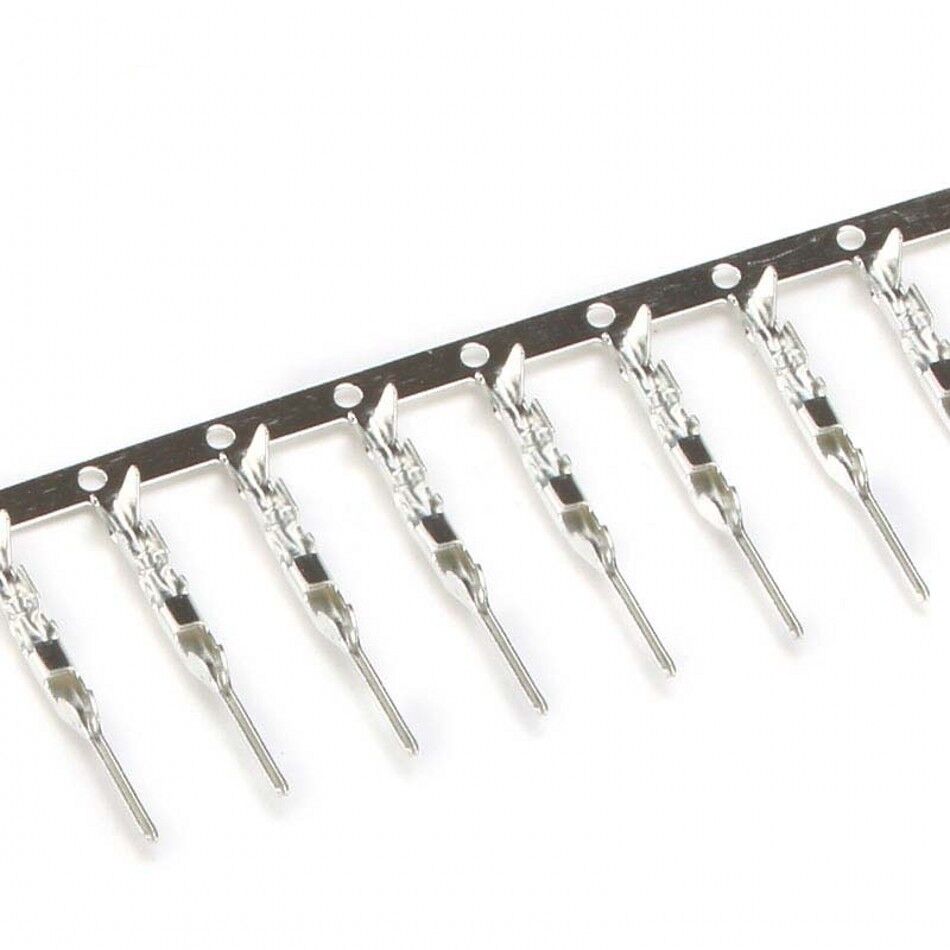

Male Terminal Pin
Looking for a solder-free solution to terminate cables? This male crimp terminal from Molex is designed for EconoLatch wire-to-wire interconnects and enables you to establish quick and simple connections. It forms an air-tight, corrosion-resistant connection that will last a long time for more reliable performance. As it accepts wire sizes across a range of 18 to 16AWG (American Wire Gauge), this terminal is a versatile choice for use in your industrial and commercial applications.
• Tin-plated terminal provides excellent conductivity and corrosion resistance to ensure the uninterrupted transmission of power and data signals
• No need for crimping or soldering tools, saving time and effort during installation
• Accommodates high voltages of up to 400V for heavy-duty use
• No need for crimping or soldering tools, saving time and effort during installation
• Accommodates high voltages of up to 400V for heavy-duty use
Applications
• Household appliances
• Networking systems
Male Terminal Pin Specification
- Manufacturer: DEUTSCH
- Type of connector: wire-wire
- Connector: Contact
- Contact size: 20
- Kind of connector: male
- Connector series: DRB, HD30, HDP20, DRC, DTM, STRIKE
- Contact plating: nickel plated
- Electrical mounting: crimped
- Mechanical mounting: for cable
- Dedicated tool: DTT-20-00
- Connector variant: stamped and formed contacts
- Wire cross-section: 0.35-1.5mm²
How do I ensure a good crimp between wires?
To ensure a good crimp, be sure to choose a terminal that fits the wire gauge properly. You should also use a reliable crimping tool and heat shrink when possible to ensure your crimp is protected against moisture and contaminants without the need to solder.
