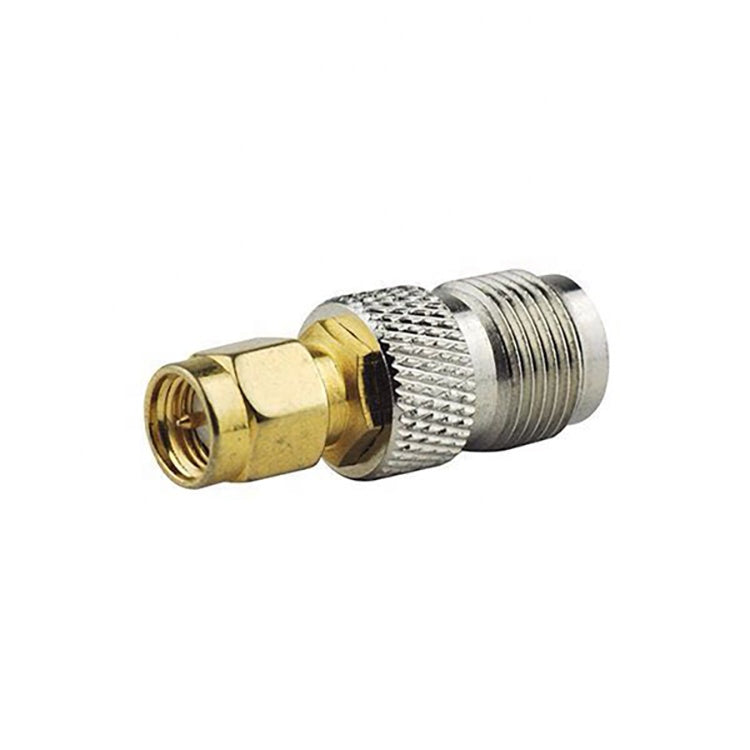

TNC female to SMA male jack Connector

https://www.botshop.co.za/web/image/product.template/1718/image_1920?unique=b65c701
(0 review)

33.90 33.9 ZAR 39.88 VAT Included

34.68 VAT Included

Not Available For Sale

This combination does not exist.

0

Internal Reference: ACC-213

TNC female to SMA male jack Connector.

For the TNC female to SMA male jack Connector, the inner diameter of the outer conductor is 6.5mm and the characteristic impedance is 50Ω. TNC RF coaxial connectors come with a screw-coupling mechanism so they have many good characteristics like reliable connection and vibration-proof, etc. This kind of coaxial assembly is widely used in electronic equipment and instruments.

TNC female to SMA male jack Connector Specification:

Temperature range -55°C to +155°C
Vibration 200m/S(80Hz to 2000Hz)
Electrical Specifications
Frequency range DC to 3GHz
Working voltage At sea level 500V (RMS)
At 5.4 Kpa 125V
Contact resistance Center conductor ≤ 10mΩ
Outer conductor ≤ 2.5mΩ
Insulation resistance ≥ 5000MΩ
Withstand voltage At sea level 1500V (RMS)
At 5.4 Kpa 300V
VSWR Type Straight ~1 GHz ≤ 1.15
~3 GHz ≤ 1.22
Type angle ~1 GHz ≤ 1.15
~3 GHz ≤ 1.30
Screening effectiveness 55dB min at 2~3 GHz
Mechanical Specifications
Center conductor withdrawal force ≥ 0.57 N
Durability 500 cycles
Applicable standard IEC169-17
MIL-C-39012
