Deutsch DTM-6Pin Male
(0 review)

81.40 81.4 ZAR 95.76 VAT Included

83.27 VAT Included

Not Available For Sale

This combination does not exist.


Internal Reference: ACC-186

Deutsch DTM-6Pin Male

Deutsch DTM Series connectors are ideal for automotive and other harsh environment signal connector applications. They are often used in engine compartments and sensor wiring. The DTM series features a smaller contact and enhanced design in comparison to the DT series connector.

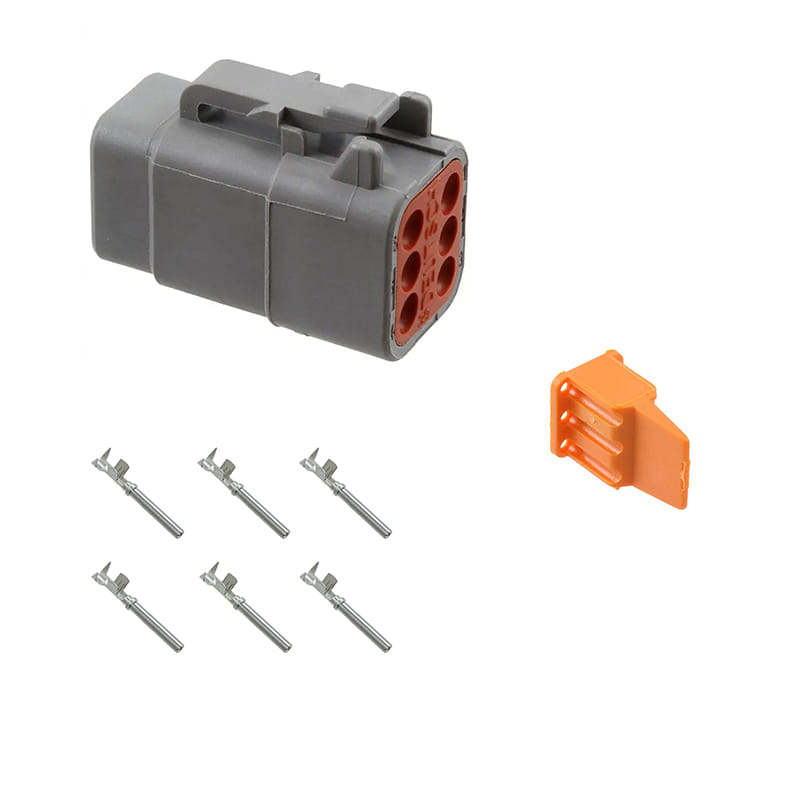

The DTM plug comes in a pack with pins, stoppers and seals included.

Technical Specification:

• Friction lock connector mating
• Rugged thermoplastic connector housing
• Hand insertable/removable contacts
• Dielectric withstand voltage 1500 V ac
• Positive contact retention
• Front and rear seals provide water tight sealing.
• Waterproof up to 1m deep

Number of Contacts 6
Type Automotive Connector
Gender Male
Number of Rows 2
Current Rating 7.5A
Series DTM
Colour Grey
Termination Method Crimp
Height 23.8mm
Width 15.24mm
Depth 43.69mm
Housing Material Thermoplastic
Maximum Operating Temperature +125°C
Contact Plating Nickel
Minimum Operating Temperature -55°C
Contact Material Copper Alloy
