Deutsch DTM-2Pin Female

https://www.botshop.co.za/web/image/product.template/710/image_1920?unique=0fd2d54
(0 review)

15.99 15.99 ZAR 15.99 VAT Included

13.90 VAT Included

Not Available For Sale

This combination does not exist.

0

Internal Reference: ACC-179

Deutsch DTM-2Pin Female

Deutsch DTM Series connectors are ideal for automotive and other harsh environment signal connector applications. They are often used in engine compartments and sensor wiring. The DTM series features a smaller contact and enhanced design in comparison to the DT series connector.

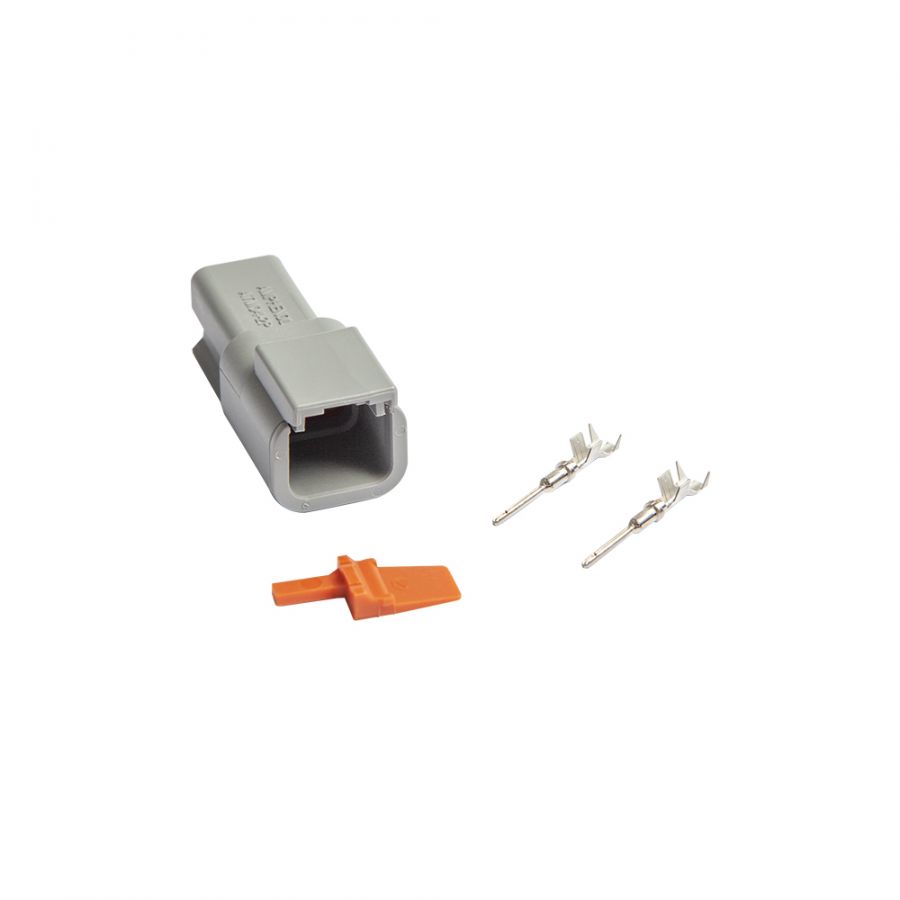

The DTM plug comes in a pack with pins, stoppers and seals included.

Technical Specification:

• Friction lock connector mating
• Rugged thermoplastic connector housing
• Hand insertable/removable contacts
• Dielectric withstand voltage 1500 V ac
• Nickel plated copper alloy contacts
• Positive contact retention

• Front and rear seals provide water tight sealing.
• Waterproof up to 1m deep


Number of Contacts 2
Type Automotive Connector
Gender Female
Number of Rows 1
Current Rating 7.5A
Series DTM
Colour Grey
Height 15.24mm
Width 40mm
Housing Material PA GF
Depth 30.1mm
Maximum Operating Temperature +125°C
Minimum Operating Temperature -55°C


How to use
