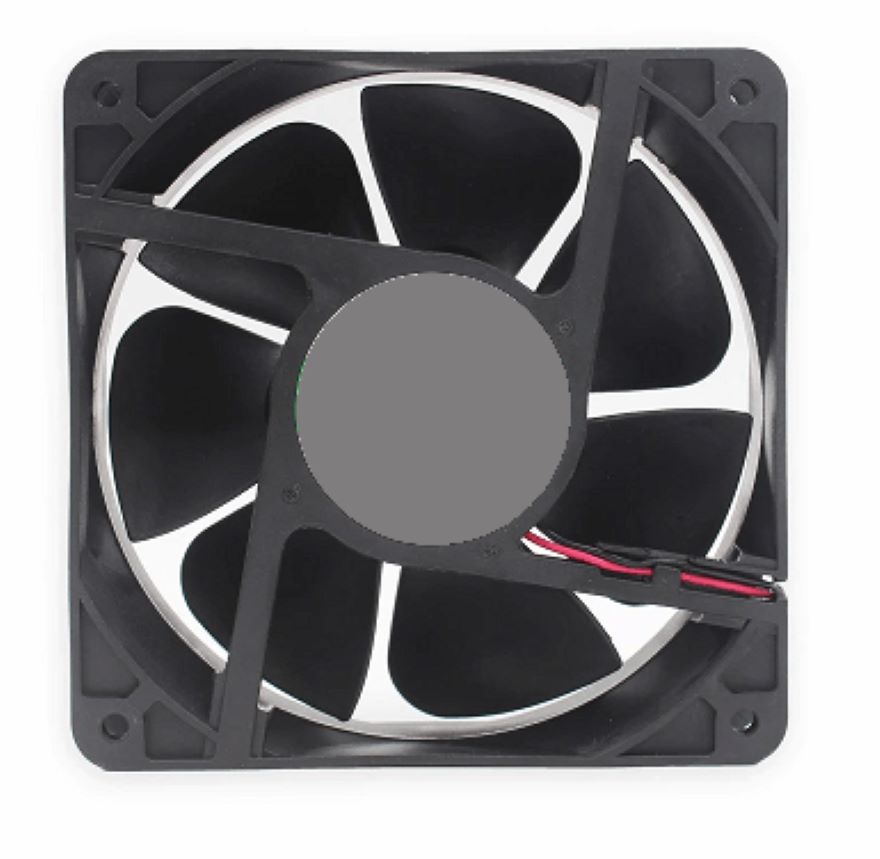

120mm 12v Fan 0.25A

https://www.botshop.co.za/web/image/product.template/74/image_1920?unique=409c4af
(0 review)

108.82 108.82000000000001 ZAR 155.47 VAT Included

135.19 VAT Included

Not Available For Sale

This combination does not exist.

Breakout

Internal Reference: ACC-045


120mm 12v Fan 0.25A


Are you ready to cool off all your projects with the 120mm 12v Fan 0.25A? This tiny powerhouse packs a punch in a neat, compact package. With a supply voltage of 12V DC, you'll be able to get the job done quickly and easily.

Direct current fans, or DC fans, are powered with a potential of fixed value such as the voltage of a battery. It features a maintenance-free shaft, long service life, sufficient heat dissipation air volume, and air pressure.

DC fans are more energy efficient than AC fans because they have a simpler design and fewer components. This means that less energy is lost as heat, resulting in lower power consumption.

The above images as you can see not only a pinout for the 120mm 12v Fan 0.25A but also give us a lot more information on the 120mm 12v Fan 0.25A such as where you can use it and what types of boards you can use and plug in the 120mm 12v Fan 0.25A

120mm 12v Fan 0.25A Specification

  • Supply Voltage: 12 VDC
  • Height: 120mm
  • Width: 120mm
  • Depth: 25mm
  • Power Consumption: 2.9W
  • Maximum Current: 250mA
  • Air Flow: 68m³/h
  • Dimensions: 120 x 120 x 25mm
  • Termination Type: Lead Wire
  • Noise Level: 34dB
