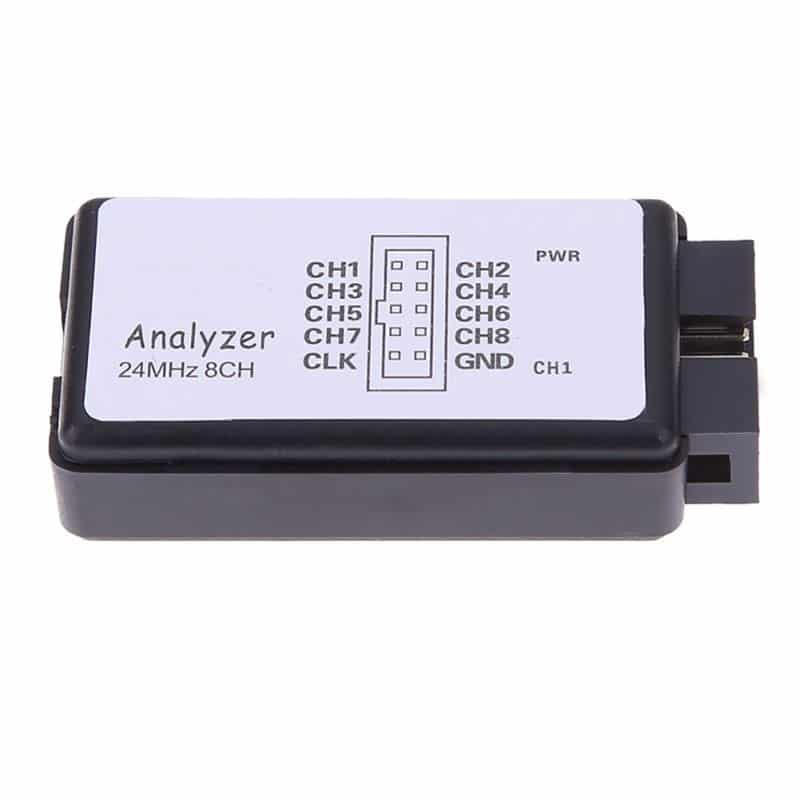

USB Logic Analyzer 24Mhz 8ch

https://www.botshop.co.za/web/image/product.template/1585/image_1920?unique=010ca07
(3 reviews)

356.59 356.59000000000003 ZAR 419.52 VAT Included

364.80 VAT Included

Not Available For Sale

This combination does not exist.

Component Electronic Prototype Prototyping Connector

Internal Reference: ACC-025

USB Logic Analyzer 24Mhz 8ch

With the growth of UART, I2C, and SPI sensors, logic analyzers are becoming a tool everyone needs in their toolbox. You can quickly see the data communicated to Bluetooth, GPS, GPRS, and many other modules, not just in bits but in human-readable language. You can do cool things like timing and discovery of communication baud rates. Lots of very cool fault-finding things but also one of the most impressive learning aids for newcomers in electronics - you can now visually see, read and understand how all these things work.

This is a USB logic analyzer with support for sampling rates of up to 24MHz. It will work with both 3.3V and 5V systems (up to 5.25V max and 2.0V minimum on a high logic level). The logic analyzer is powered via an included mini-B USB cable.

Free software

This USB Logic Analyzer 24Mhz 8ch works with sigrok – an open-source, cross-platform signal analysis software suite. See the tutorial link below to see how to install the software and driver for this product.

Check out this sigrok PulseView tutorial for help getting started.

USB Logic Analyzer 24Mhz 8ch Description:
Sampling speed:24 MHz
Logic 8 input - can be collected at the same time. With signal analysis, such as I2C, UART, and other sampling analyses.
Logic can sample up to 10 billion samples, allowing you to capture even the most elusive events.
From logic: 5V accepts 5.25 V, and has a standard CMOS threshold logic of 0.8V low. 2.0 V logic high. The input impedance is about 1 MΩ and also see more specifications (10 pF)
Overvoltage protection of equipment for safe work.

This USB Logic Analyzer 24Mhz 8ch ships with female-to-female jumpers and a USB cable.
