3x AA Battery Holder with switch

R 9.66 9.66 ZAR R 23.92 VAT Included

R 20.80 VAT Included

This combination does not exist.

Internal Reference: ACC-009-3AA

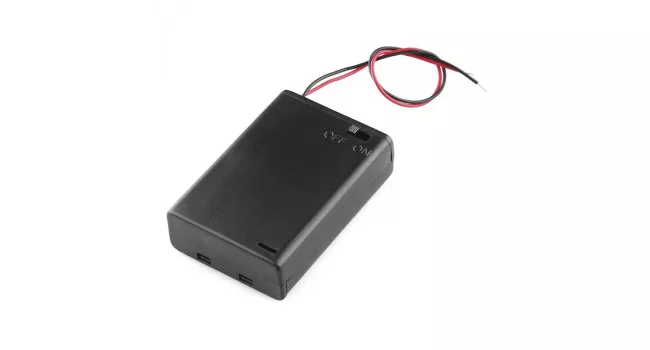

3x AA Battery Holder with Switch

The 3x AA Battery Holder with Switch is a robust, compact power solution engineered for reliability in electronic projects, prototyping, and portable device applications. Featuring a durable black ABS plastic enclosure with integrated power control, this battery holder delivers a consistent 4.5V output while protecting your batteries and providing convenient access.

Battery Capacity: Holds 3 x AA batteries (alkaline, lithium, or rechargeable NiMH)
Output Voltage: 4.5V nominal (3 x 1.5V in series configuration)
Voltage Range: 3.0V - 4.8V (depending on battery type and charge state)
Maximum Current: Up to 2A continuous (limited by battery specifications)
Dimensions: Approximately 70mm x 50mm x 20mm (2.8" x 2.0" x 0.8")
Wire Length: 150mm (6") red and black tinned copper leads
Wire Gauge: 22 AWG stranded wire for flexibility and reliability
Switch Type: Integrated sliding ON/OFF switch with positive click action
Enclosure Material: High-impact black ABS plastic with matte finish
Cover Type: Removable sliding cover with secure retention mechanism
Contact Material: Nickel-plated spring steel for optimal conductivity
Weight: Approximately 45g (without batteries)

Professional Black Housing: Sleek matte black ABS plastic construction provides durability while maintaining a professional appearance for commercial applications.
Secure Sliding Cover: The removable cover features a smooth sliding mechanism with positive retention, protecting batteries from environmental contaminants while ensuring easy access for replacement.
Integrated Power Switch: Built-in sliding ON/OFF switch eliminates the need for external switching components, providing direct power control at the battery source.
Pre-wired with Quality Leads: Factory-installed 150mm tinned copper wire leads (red positive, black negative) with flexible insulation for easy integration into projects.
Series Battery Configuration: Internal wiring connects all three batteries in series, providing 4.5V output ideal for microcontrollers and low-power electronics.
Spring-Loaded Contacts: Nickel-plated spring contacts ensure reliable electrical connection while accommodating slight battery size variations.

Microcontroller Projects: Perfect for powering Arduino boards, ESP32/ESP8266 modules, and other 3.3V-5V development platforms
Portable Electronics: Ideal for handheld devices, remote sensors, and battery-powered measurement instruments
Educational Projects: Excellent for STEM education, electronics learning kits, and student prototyping
DIY Electronics: Essential component for hobbyist projects, robotics, and electronic experimentation
Backup Power Systems: Suitable for low-power backup applications and emergency lighting circuits
Sensor Networks: Reliable power source for IoT sensors, wireless modules, and data loggers

Easy Integration: Solder or connect wire leads directly to your circuit board or project
Battery Installation: Slide cover to access battery compartment, insert 3 x AA batteries observing polarity markings
Power Control: Use integrated switch to turn power ON/OFF as needed
Maintenance: Periodically check battery voltage and replace as needed for optimal performance

Battery Types: Alkaline (Duracell, Energizer), Lithium (L91), Rechargeable NiMH (Eneloop, etc.)
Voltage Requirements: Suitable for 3.0V - 5.0V electronic circuits
Mounting Options: Can be secured using adhesive strips, screws, or integrated into custom enclosures
